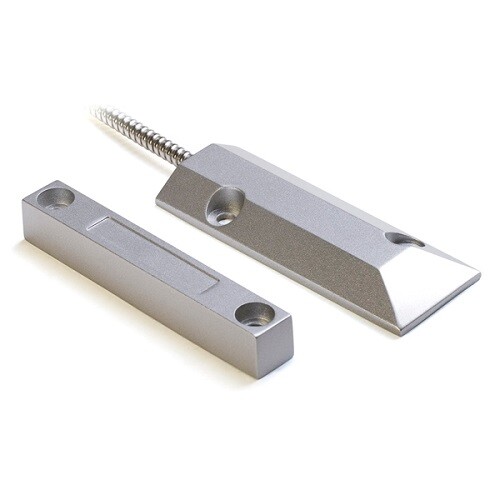

Magnetic Contact (MG) – Roller Shutter

Description

Magnetic Contact (MG) – Roller Shutter

Product Description

The Roller Shutter Magnetic Contact (MG) is a heavy-duty security sensor specifically designed for protecting roller shutters, industrial doors, warehouse entrances, and large access points. Built with a rugged metallic housing and a wide operating gap, it provides reliable intrusion detection in demanding commercial and industrial environments.

The sensor operates using a magnetic reed switch and magnet assembly that monitors the open or closed status of roller shutters and doors. When the shutter is opened or tampered with, the sensor triggers an alarm signal to the connected alarm or security system. Its durable construction ensures long-lasting performance, resistance to impact, and dependable operation in harsh conditions.

Key Features

• Designed for roller shutters and industrial doors
• Heavy-duty metallic construction
• Wide operating gap for large installations
• Reliable intrusion and tamper detection
• Normally Closed (NC) contact operation
• Surface-mounted installation
• Resistant to harsh environmental conditions
• Compatible with alarm and access control systems

Applications

• Roller Shutter Protection
• Warehouses and Storage Facilities
• Industrial Buildings
• Commercial Shops and Retail Stores
• Factory Entrances
• Loading Bays
• Garages and Service Centers
• Perimeter Security Systems

Specifications

• Type: Magnetic Reed Contact
• Housing Material: Heavy-Duty Metal Alloy
• Contact Configuration: Normally Closed (NC)
• Installation Type: Surface Mount
• Operating Gap: Up to 75–100 mm (model dependent)
• Connection: Wired
• Operating Temperature: -20°C to +60°C
• Application: Indoor and Outdoor Use
