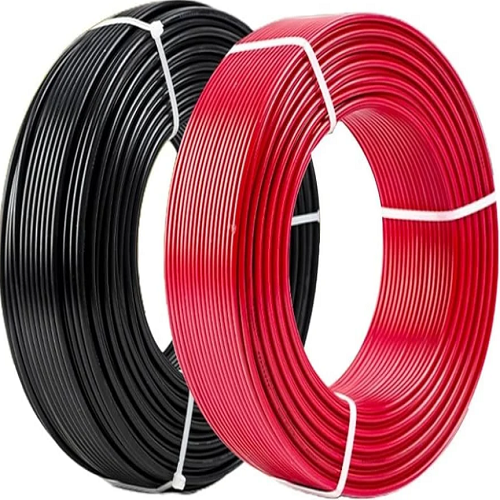

6 mm² Solar DC Cable

The Suntree 6mm² PV Solar Cable is a high-quality, durable single-core photovoltaic cable designed for reliable DC power transmission in solar energy systems. It features premium tinned copper conductors and dual-wall XLPO (cross-linked polyolefin) insulation/sheath, making it ideal for connecting solar panels to inverters, charge controllers, and battery systems in residential, commercial, and industrial installations.

Key Features

• Dual-wall insulation with electron beam cross-linking for superior performance.
• Excellent resistance to UV rays, water, ozone, abrasion, chemicals, salt, and general weathering.
• Halogen-free, flame-retardant, and low-toxicity for enhanced safety.
• High flexibility for easy installation and stripping.
• High current-carrying capacity with low power loss.
• Long service life (typically 25 years).
• TUV/UL approved and compliant with standards like EN 50618 / IEC 62930.
  Typical Technical Specifications

• Cable Size: 6mm² (single core)
• Conductor: Tinned copper, stranded (Class 5)
• Insulation/Jacket: XLPO (cross-linked polyolefin), UV-resistant
• Rated Voltage: 1000V / 1500V DC
• Temperature Range: -40°C to +90°C (max conductor temp up to 120°C)
• Colors: Commonly available in red and black
• Applications: Solar PV systems (rooftop, ground-mounted, off-grid, hybrid, etc.)

This cable is engineered for outdoor use, offering flexibility, safety, and efficiency in harsh environmental conditions.
