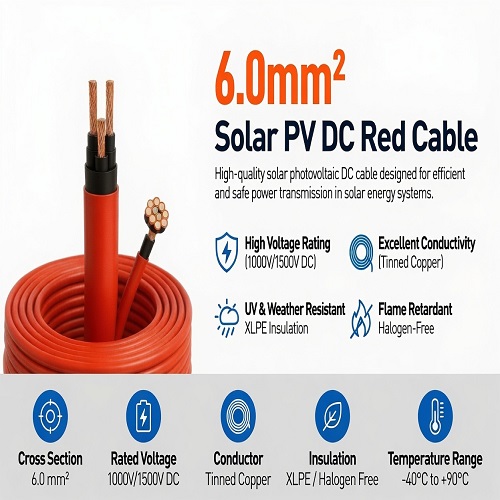

6.0mm² Solar PV DC Red Cable – Product Description
The 6.0mm² Solar PV DC Red Cable is a premium-quality, single-core photovoltaic cable designed for the safe and efficient transmission of direct current (DC) power in solar energy systems. Manufactured with high-purity tinned copper conductors and insulated with UV-resistant, halogen-free, cross-linked (XLPO) materials, it offers excellent durability, flexibility, and long-term performance in harsh outdoor environments.
The red insulation allows for easy identification of the positive (+) conductor, ensuring safe and organized installation. Suitable for use in residential, commercial, and utility-scale solar installations, this cable provides reliable electrical performance while withstanding extreme weather conditions.
Key Specifications
- Product Type: Solar PV DC Cable
- Conductor Size: 6.0mm²
- Cable Colour: Red
- Conductor Material: Tinned Copper
- Conductor Type: Flexible Stranded
- Insulation Material: Cross-Linked Polyolefin (XLPO)
- Sheath Material: Cross-Linked Polyolefin (XLPO)
- Rated Voltage: 1.5kV DC (1500V)
- Test Voltage: 6.5kV AC
- Maximum Conductor Temperature: 120°C
- Operating Temperature: -40°C to +90°C
- Short Circuit Temperature: Up to 250°C (5 seconds)
- Minimum Bending Radius: 4 × Cable Diameter
- UV Resistance: Yes
- Weather Resistance: Excellent
- Flame Retardant: Yes
- Halogen-Free: Yes
- Moisture & Ozone Resistance: Yes
- Standards Compliance: IEC 62930, EN 50618, TÜV Certified (model dependent)
Key Features
- High-purity tinned copper conductor for excellent electrical conductivity.
- UV-resistant insulation designed for long-term outdoor use.
- Flexible stranded construction for easy installation.
- Double-insulated XLPO material provides superior mechanical and thermal protection.
- Resistant to abrasion, chemicals, ozone, moisture, and extreme weather.
- Low smoke, halogen-free construction improves safety during fire incidents.
- Colour-coded red insulation for positive DC connections.
- Long service life with minimal maintenance.
Applications
- Residential solar photovoltaic systems
- Commercial rooftop solar installations
- Utility-scale solar farms
- Off-grid solar systems
- Hybrid solar power systems
- Battery energy storage systems (BESS)
- Solar charge controller connections
- Solar inverter wiring
- DC power distribution systems
Benefits
- Ensures safe and efficient DC power transmission.
- Reduces power losses through low electrical resistance.
- Withstands harsh environmental conditions for reliable outdoor performance.
- Simplifies installation with flexible construction and colour-coded identification.
- Enhances system safety through flame-retardant and halogen-free materials.
- Delivers long-lasting performance with excellent resistance to UV radiation and weathering.
The 6.0mm² Solar PV DC Red Cable is a dependable and durable solution for solar energy installations, offering outstanding conductivity, weather resistance, and safety. It is ideal for connecting solar panels, inverters, batteries, and other DC components in residential, commercial, and industrial photovoltaic systems.
