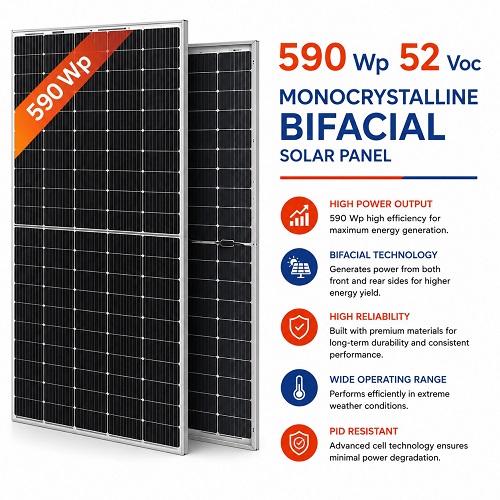

590W 52VOC Monocrystalline Bifacial Solar Panel – Product Description
The 590W 52VOC Monocrystalline Bifacial Solar Panel is a premium, high-efficiency solar module designed to maximize energy generation for residential, commercial, and industrial solar power systems. Built with advanced monocrystalline PERC bifacial cell technology, the panel captures sunlight from both the front and rear sides, increasing total energy output by utilizing reflected light from surrounding surfaces.
With a 590W power rating and an open-circuit voltage (Voc) of approximately 52V, this module delivers exceptional performance, durability, and long-term reliability. Its robust construction, low degradation rate, and excellent efficiency make it ideal for grid-tied, hybrid, and off-grid solar installations.
Key Specifications
- Panel Type: Monocrystalline Bifacial Solar Panel
- Rated Power (Pmax): 590W
- Open Circuit Voltage (Voc): 52V
- Maximum Power Voltage (Vmp): Approximately 43–45V
- Short Circuit Current (Isc): Approximately 14–15A
- Maximum Power Current (Imp): Approximately 13–14A
- Cell Technology: Monocrystalline PERC
- Bifacial Gain: Up to 5–25% additional energy (depending on installation conditions)
- Module Efficiency: Up to 22.8%
- Number of Cells: 144 Half-Cut Cells
- Maximum System Voltage: 1500V DC
- Junction Box: IP68 Rated
- Connector Type: MC4 Compatible
- Front Glass: 2.0 mm Tempered Anti-Reflective Glass
- Rear Glass: 2.0 mm Tempered Glass (Glass-to-Glass Design)
- Frame Material: Anodized Aluminium Alloy
- Operating Temperature: -40°C to +85°C
- Wind Load: Up to 2400 Pa
- Snow Load: Up to 5400 Pa
- Protection Rating: IP68
Key Features
- High-efficiency monocrystalline PERC cells for maximum power generation.
- Bifacial technology captures sunlight from both sides for increased energy yield.
- Half-cut cell design reduces power loss and improves performance under partial shading.
- Glass-to-glass construction enhances durability and resistance to moisture, corrosion, and mechanical stress.
- Excellent low-light performance for improved energy production during cloudy conditions.
- Low annual power degradation for long-term reliability.
- High mechanical strength suitable for harsh environmental conditions.
- Compatible with on-grid, hybrid, and off-grid solar systems.
Applications
- Residential rooftop solar systems
- Commercial buildings
- Industrial solar installations
- Solar farms and utility-scale projects
- Off-grid power systems
- Hybrid solar energy systems
- Agricultural and irrigation projects
- Backup power installations
Benefits
- Generates more electricity than conventional monofacial panels.
- Reduces overall cost per kilowatt-hour over the panel’s lifespan.
- Increases return on investment through higher energy output.
- Built to withstand extreme weather conditions.
- Requires minimal maintenance while delivering reliable long-term performance.
The 590W 52VOC Monocrystalline Bifacial Solar Panel is an ideal choice for customers seeking high-performance solar technology with superior efficiency, enhanced durability, and increased energy production for both commercial and residential renewable energy projects.
