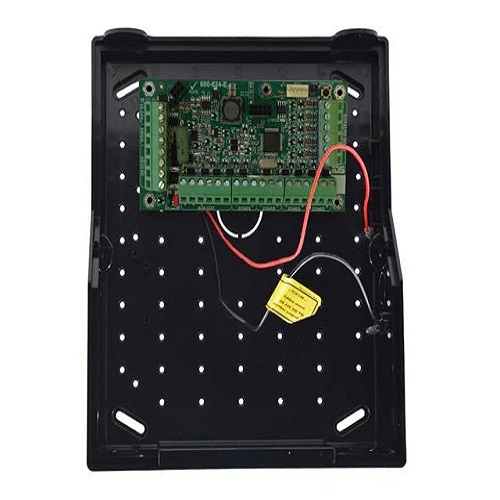

IDS Control panel 8 zone

Description

🔹 System Capacity

• 8 wired zones (expandable to 16/32 with modules)
• Supports multiple partitions (separate areas)
• Compatible with:
  • PIR motion detectors
  • Door/window magnetic contacts
  • Smoke & heat detectors

---

🔹 Control & Operation

• Arm/disarm via:
  • Keypad (LCD/LED)
  • Mobile app (model dependent)
  • Remote key fob
• Multiple user codes with access levels
• Quick arm, stay arm, and disarm modes

---

🔹 Connectivity

• Options include:
  • GSM / GPRS / 4G
  • Ethernet / LAN
• Real-time alerts via:
  • Push notifications
  • SMS
  • Voice call

---

🔹 Security Features

• Tamper protection (panel & zones)
• Built-in siren/bell output
• Supports:
  • Panic alarm
  • Fire alarm
  • Medical emergency
• Event log (stores alarm history)

---

🔹 Expansion & Integration

• Expandable using:
  • Zone expander modules
  • Wireless receivers (for hybrid systems)
• Integration with:
  • CCTV systems
  • Smart home/security platforms

---

🔹 Power Supply

• Input: 220V–240V AC
• Backup: 12V rechargeable battery
• Low battery & power failure alerts

---

🔹 Physical & Build

• Durable metal or ABS enclosure
• Wall-mounted design
• LED/LCD status indicators

---

🔹 Environmental

• Operating temperature: approx. -10°C to +55°C
• Indoor installation recommended
